Injection aggregate AI-400

  • September 2, 2021 9:03 pm
  • Poland, Europe
  • 394 views

Description

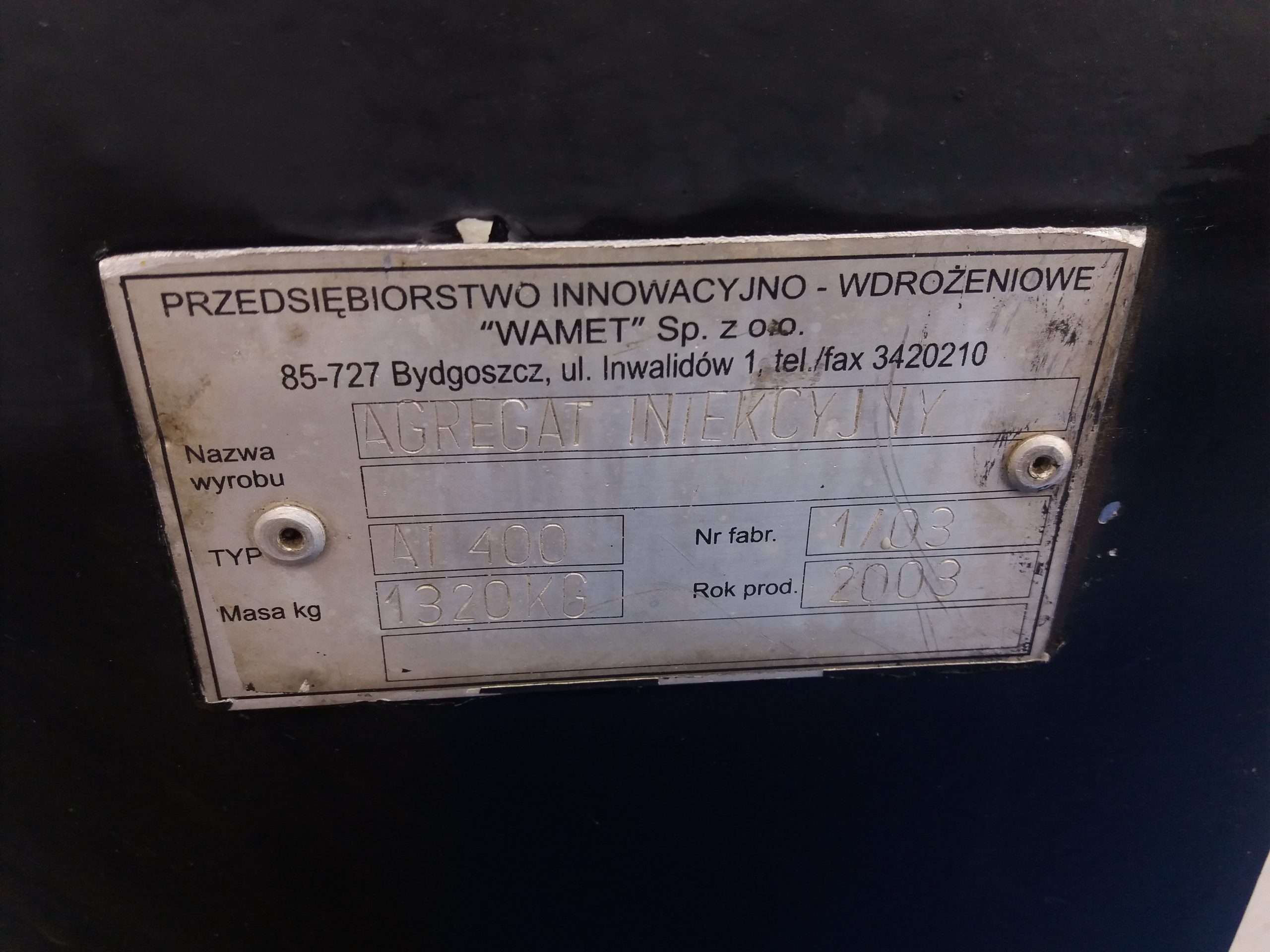

Used injection aggregate AI-400 is intended for feeding cement grout or bentonite at the pressure max. up to 2.5 MPa – 25 Bar. Year of manufacture 2003.

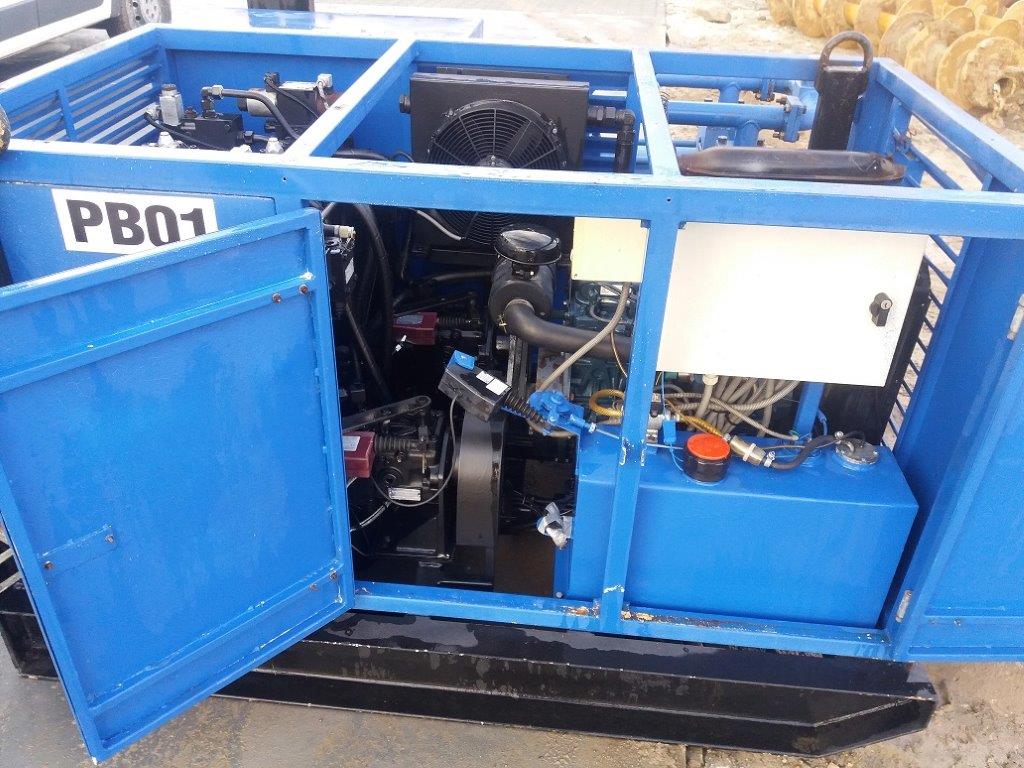

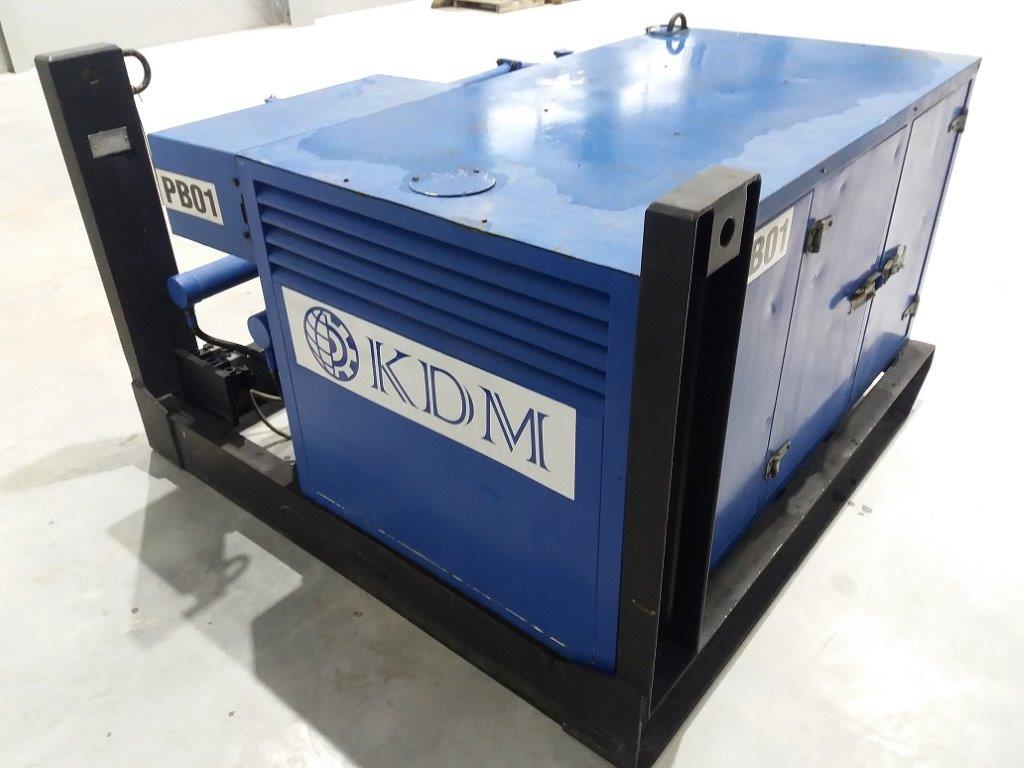

Aggregate built on a strong steel frame, which can be set directly on the construction site.

Type of injection: cement, bentonite
Capacity: 400 dm3/min. – 24 m3/h.
Max pressure: 2.5 MPa – 25 Bar

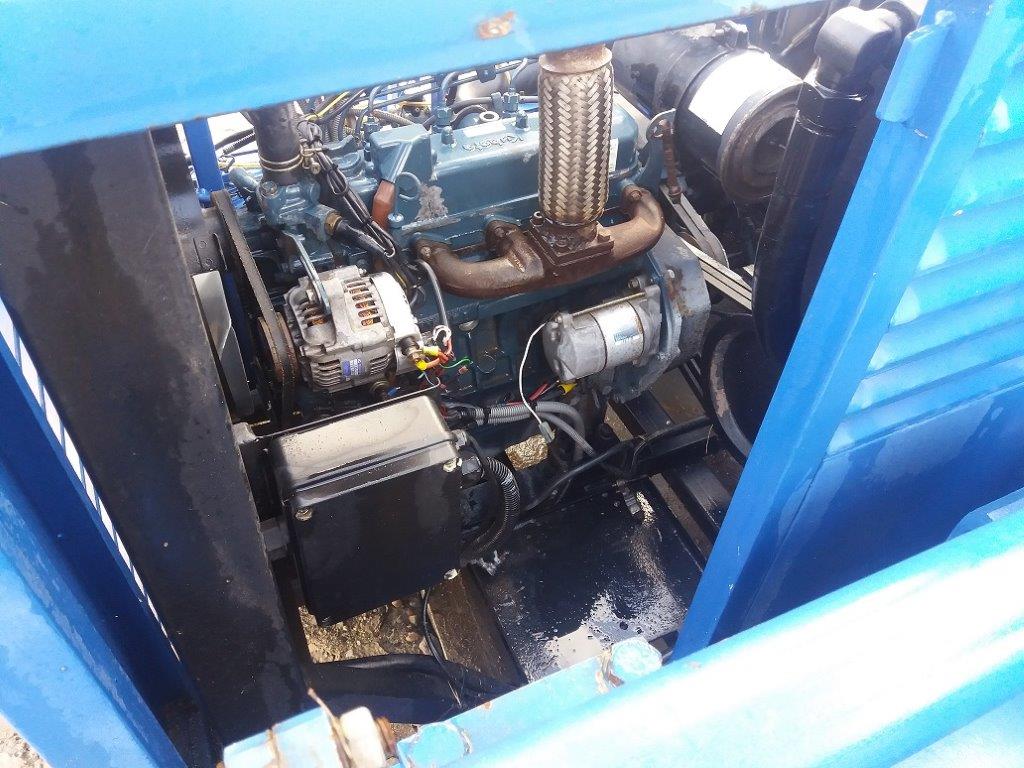

Diesel engine Kubota V1505E: 22 kW / 3000 rpm

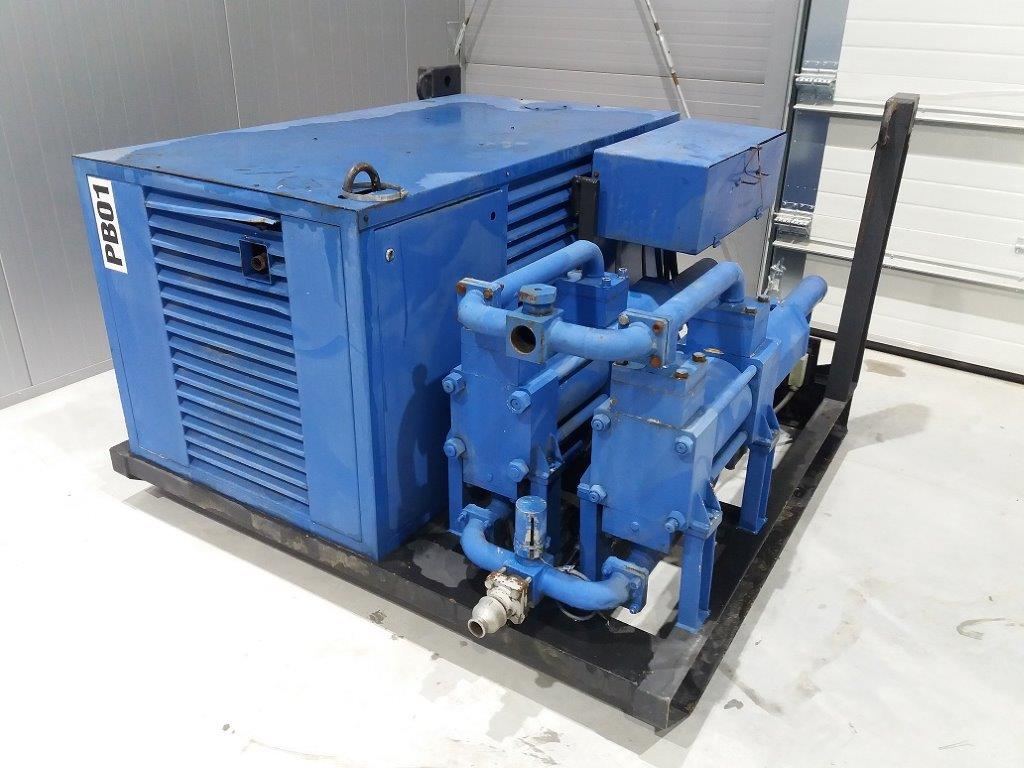

Injection pump (2 pcs): PPT-200 (single-piston double action)
Loco: Stara Bukówka close to Warsaw
