Used pile press TGM130H – steel sheet piles

  • September 2, 2021 9:00 pm
  • Poland, Europe
  • 545 views

Description

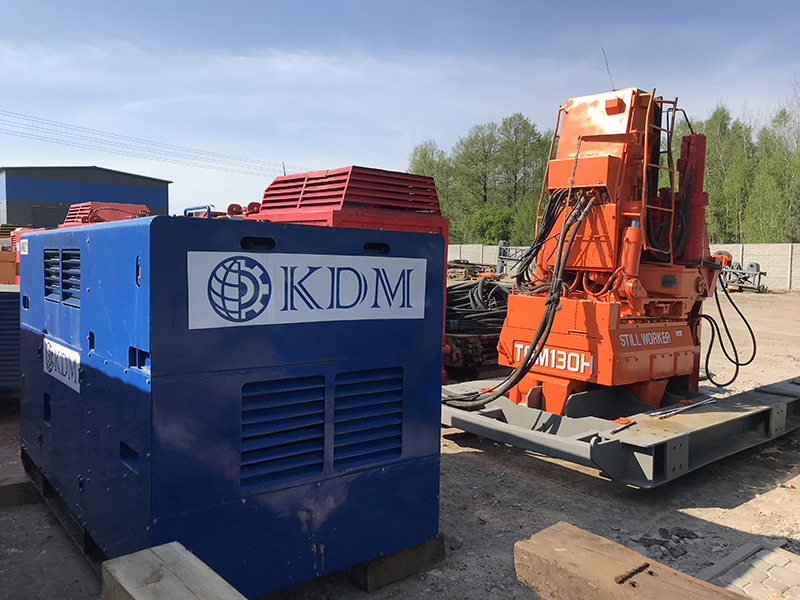

Used silent pile press Kowan Still Worker TGM130 together with power pack TE-60H and balast extraweight and hydraulic hoses .

Technical specification:

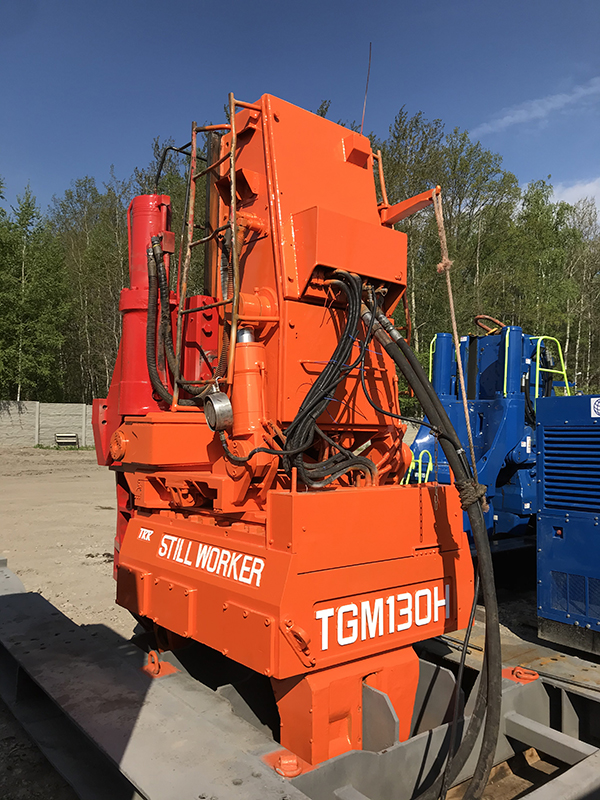

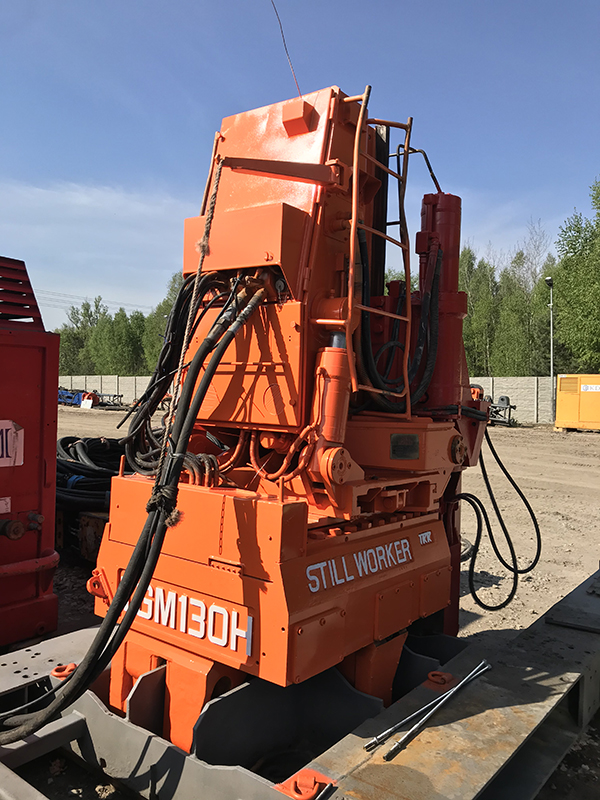

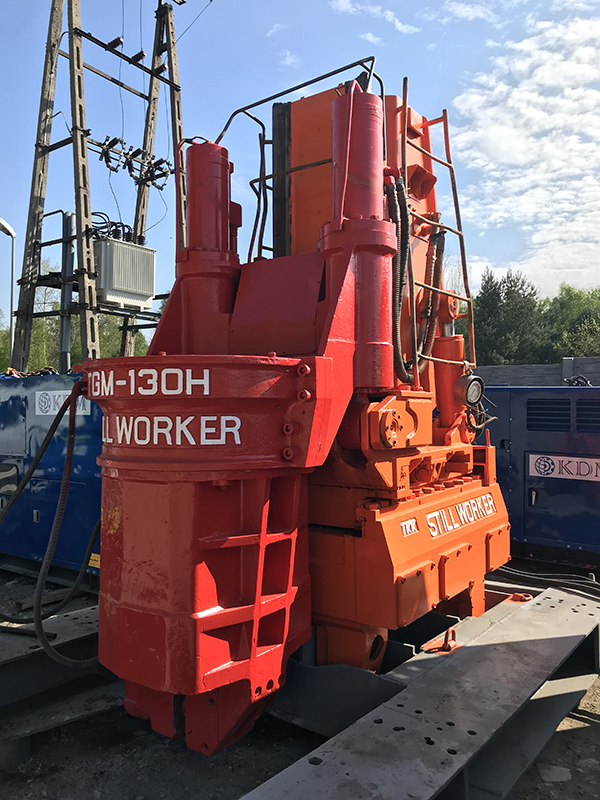

Pile press TGM 130H
Max pressing in force: 1 300 kN
Max pressing out force: 1 300 kN
Stroke: 900 mm
Pressing in speed: 1,6÷5,4,0 m/min
Pressing out speed: 1,6÷16,0 m/min
Tilting device: ± 5 °
Side sleeve
Used profiles: „U” type i 400, 500 i 600 mm
Operation: cable control and remote control
Self-moving
Total weight (without clamp): 11 300 kg
Dimensions: 2330 x1200 x 3012 mm

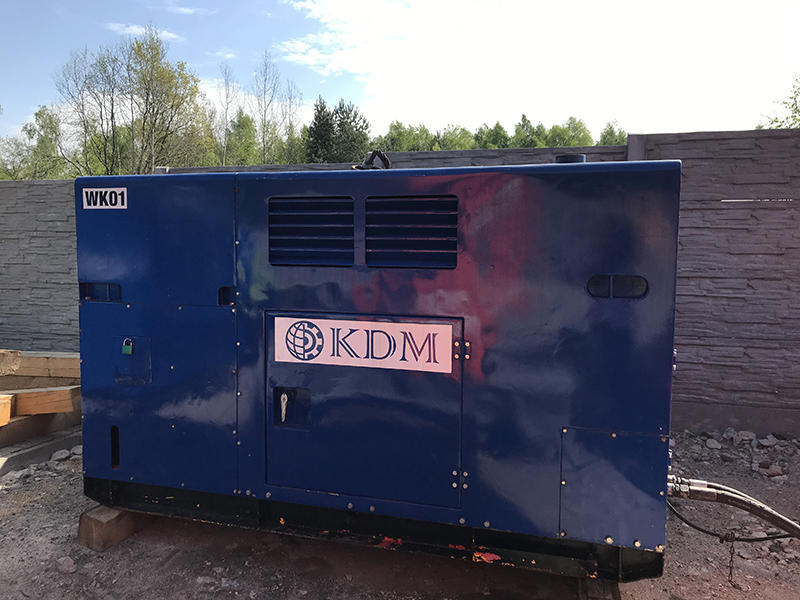

Power pack TE-60H
Engine: Diesel, 4 cylinders
Power: 63 kW at 1800 rpm
Oil flow: variable capacity
Max pressure: 35 MPa
Dimensions: 2650 x 1450 x 1600 mm
Weight: 3 500 kg

Balast extraweight for TGM 130H
Dimensions: 3200 x 1900 x 475 mm
Weight: 1700 kg

Delivery includes:
Pile press WP-130 H from the year 1992
Balast extraweight of WP-130H
Hydraulic hoses
Power pack TE-60 from the year 1992

Overhauled in the year 2008
