Vibro hammer SVR 40 VM to work on a crane or piling rig

  • August 10, 2021 8:18 pm
  • Poland, Europe
  • 375 views

Description

High-frequency new vibro hammer SVR 40VM with variable eccentric moment together with power pack PP 1072-V and the universal clamp SCN 350. It can be used in two ways – free hanging from a crane or leader guided with a piling rig. (For further information, please contact us)

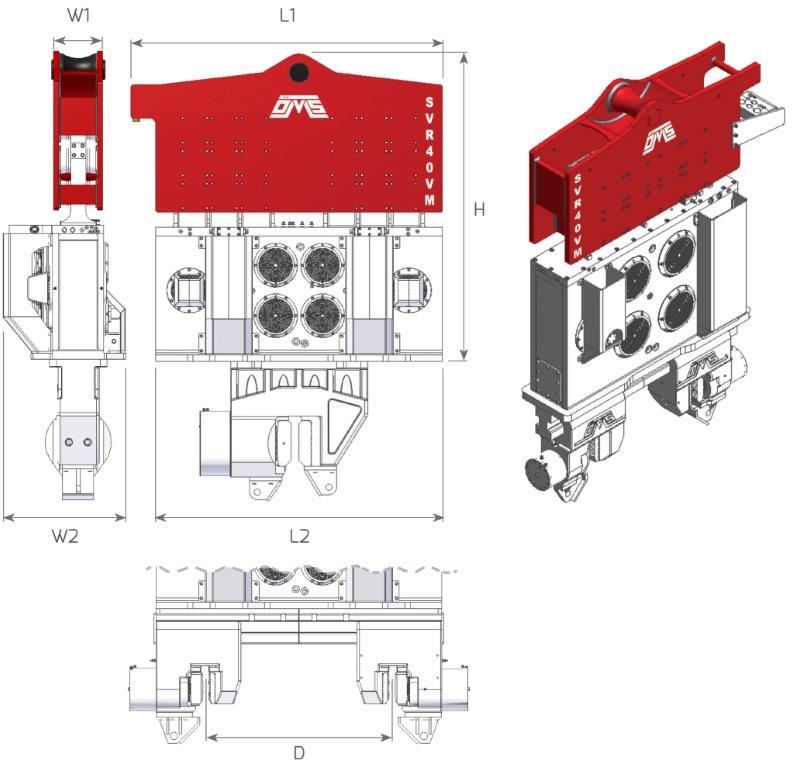

Vibro hammer SVR 40VM
Eccentric moment – 0÷40 kgm
Maximum centrifugal forces – 0÷2328 kN
Maximum amplitude – 0÷18 mm
Total weight – 10 000 kg

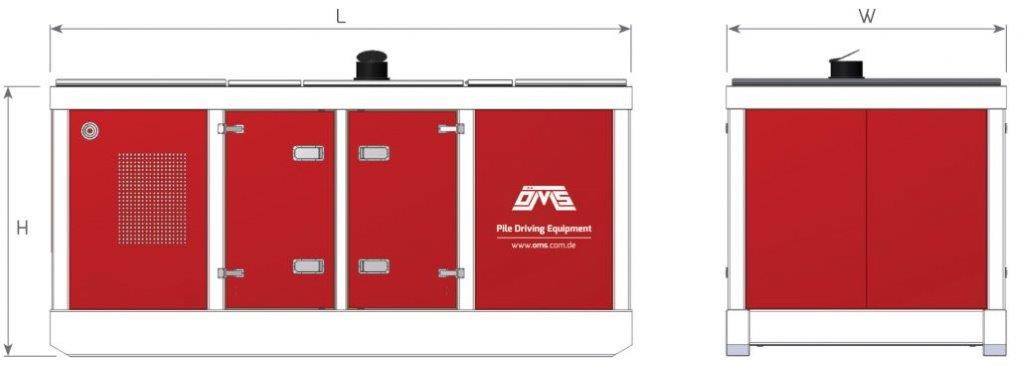

Power pack PP 1072-V
Engine – Volvo
Power – 1072 KM
Weight – 9 500 kg

Vibratory hammers are used for driving: sheet piles, casing piles, H-beams, I-beams, steel piles and tubes.

Contact
tel. +48 603 300 610
fax. +48 22 499 46 80

We offer wide range of machines – for further information, please contact us.
Our machines and devices are available for rental too.
